Chattanooga Intelect Mobile 2 RPW
Portable pneumatic radial pressure wave

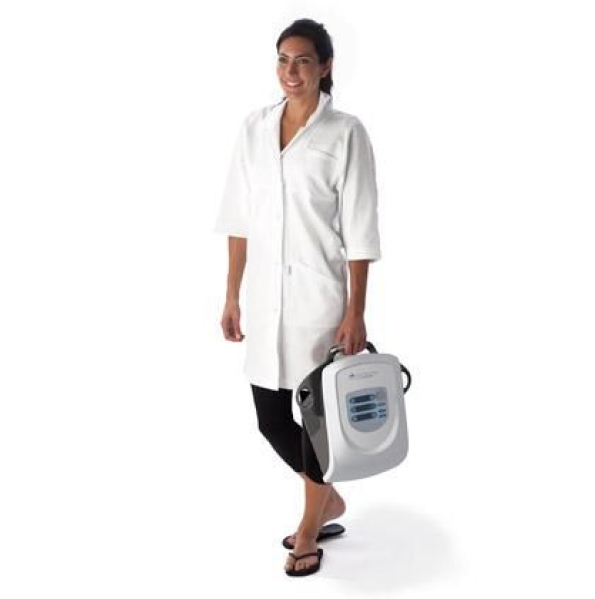

Chattanooga's portable radial pressure wave unit, with a built-in compressor and simple LED controls in an 8.2 kg housing.
- Purchase
- $16,709.85estimate
- Lease
- $380 per monthestimate
- Energy
- 0.38–0.48 mJ/mm² with the standard transmitters · 1–5 bar
- Frequency
- 1–21 Hzthe maximum falls to 12 Hz at 5 bar
- Depth
- 0–50 mm max penetration
- Handpiece life
- About 5 million shocksexpected service life; overhaul about every million
- Weight
- 8.2 kg (≈ 18.1 lb)control device
- FDA record
- Establishment listing onlynot a model-specific clearance
Specs and prices are estimates based on publicly available data as of September 2026. Confirm details with the manufacturer or seller before you buy.
Overview
A compressed-air projectile in the handpiece generates the radial wave. Pressure runs from 1 to 5 bar in 0.1 bar steps and frequency up to 21 Hz, falling to 12 Hz at full pressure. Pulses are started from a button on the handpiece, and the US brochure rates the standard Ro40 and D20-S transmitters at 0.38 and 0.48 mJ/mm².
Launched in 2017, it replaced the Intelect Mobile RPW. Its US user manual lists STORZ MEDICAL AG as the manufacturer, gives the handpiece an expected service life of about 5 million shocks, and sets a two-year warranty on the unit.
Where it stands out. The most portable Chattanooga option, with published pricing.
What to check. Same FDA listing caveat as the RPW2: a listing, not a clearance.
Specifications
Every figure links to the page it came from. Fields the manufacturer does not publish are left out.
Technology
- Category
- Radial pressure wave
- Wave generation
- Pneumatic
- Energy fieldWhere the peak energy lands
- Peaks at the applicator surface
- Technology as published
- Portable pneumatic radial pressure wave
Energy output
Pressure in bar, energy flux density in mJ/mm² and energy per pulse in mJ are different quantities. A figure in one row never stands in for another.
- Energy flux densitymJ/mm²
- 0.38–0.48 mJ/mm²with the standard transmitters
- Pressurebar
- 1–5 barin 0.1 bar steps
- FrequencyHz
- 1–21 Hzthe maximum falls to 12 Hz at 5 bar
Depth and treatment field
Focal depth, penetration and focus volume measure three different things. Compare like with like.
- Maximum penetration
- 0–50 mmwith the standard D20-S transmitter; 0–35 mm with the Ro40

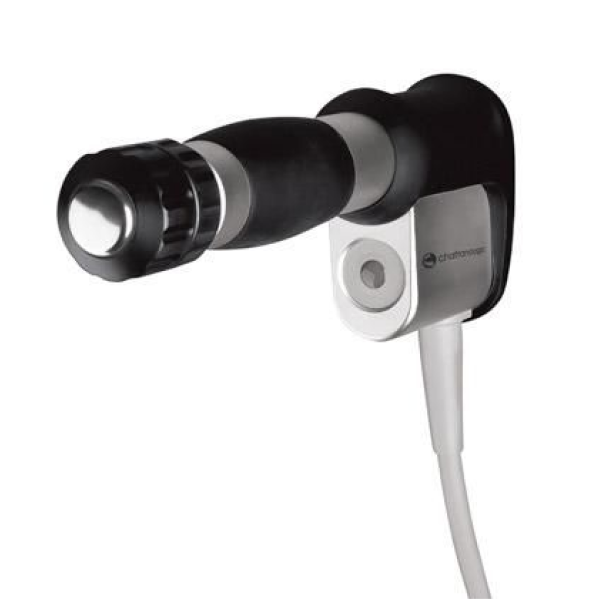

Applicators and handpiece

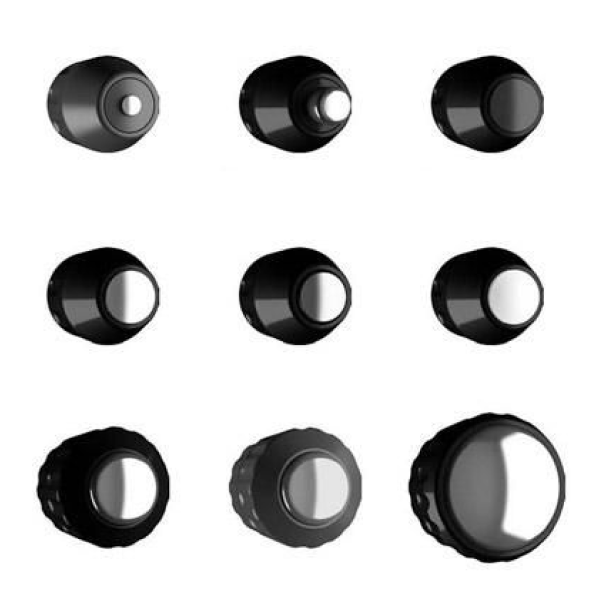

- Applicators and transmitters
- D20-S and Ro40 transmittersoptional V-ACTOR vibration handpiece
- Handpiece life
- About 5 million shocksexpected service life; overhaul about every million
- Applicator weight
- 510 gR-SW handpiece

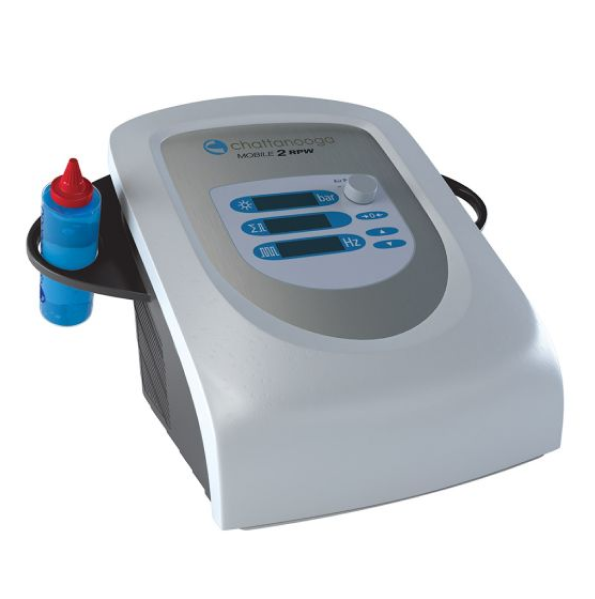

Size and setup
- Unit weight
- 8.2 kg (≈ 18.1 lb)control device
- Dimensions
- 490 × 290 × 400 mmW × H × D
- Configuration
- Portable, built-in compressor
- Other published details
- LED display for pressure, frequency and pulse countpulses triggered from a button on the handpiece
Price and buying
- Purchase price
- $16,709.85estimate
- Monthly lease
- $380 per monthestimate
- Priced accessories
- Ro40 D-Actor® ‘Beam’ transmitter, $1,200; 9 Transmitter Set in carrying case, $7,400
- Warranty and guarantees
- Two yearshandpiece two years or three million shocks; transmitters one year or one million shocks
- Sales and service
- Purchase or lease through Shockwave Source
Regulatory record
No model-specific FDA clearance was located. What exists is a DJO establishment and device listing, which registers the facility and the device type. A listing is not a clearance and carries no indication.
- FDA record located
- Establishment listing onlynot a model-specific clearance
- Indication as worded in the record
- Listing only. Not a model-specific clearance and carries no indication.
Compare the Chattanooga Intelect Mobile 2 RPW
Side-by-side pages for the machines it competes with directly. You can also compare it with any machine in the comparison tool.
- ChattanoogaRecommendedChattanooga Intelect RPW2$18,775.52 purchase estimate / $427 per month lease estimateCompare: Chattanooga Intelect Mobile 2 RPW vs Chattanooga Intelect RPW2

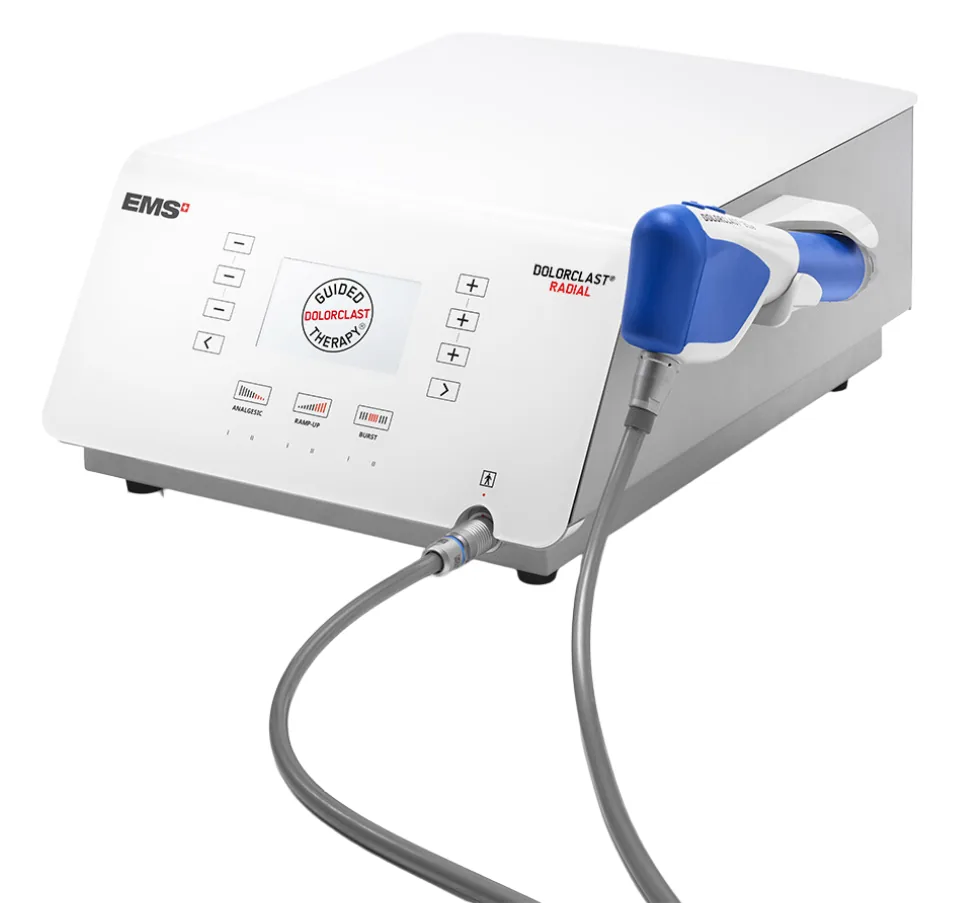

- Compare: Chattanooga Intelect Mobile 2 RPW vs EMS Swiss DolorClast Radial

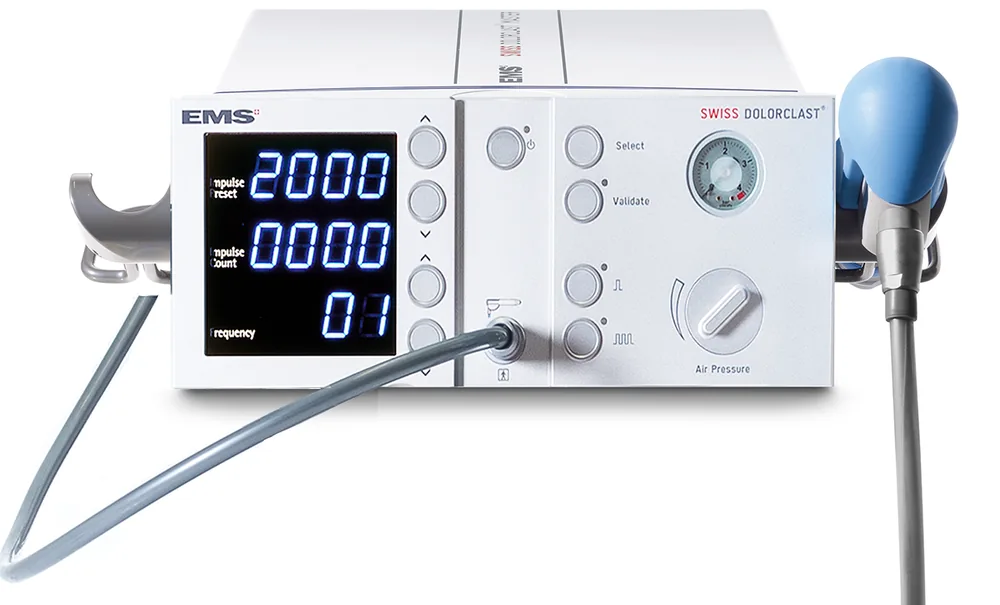

- Compare: Chattanooga Intelect Mobile 2 RPW vs EMS Swiss DolorClast Classic

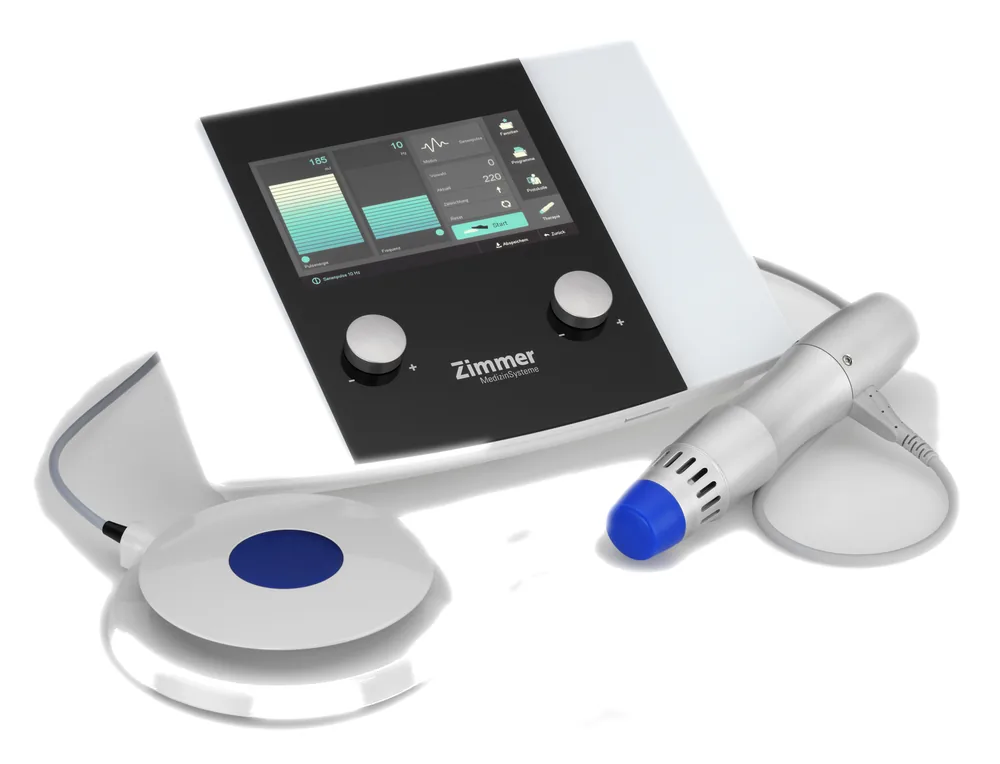

- Compare: Chattanooga Intelect Mobile 2 RPW vs Zimmer enPuls 2.0 / Pro

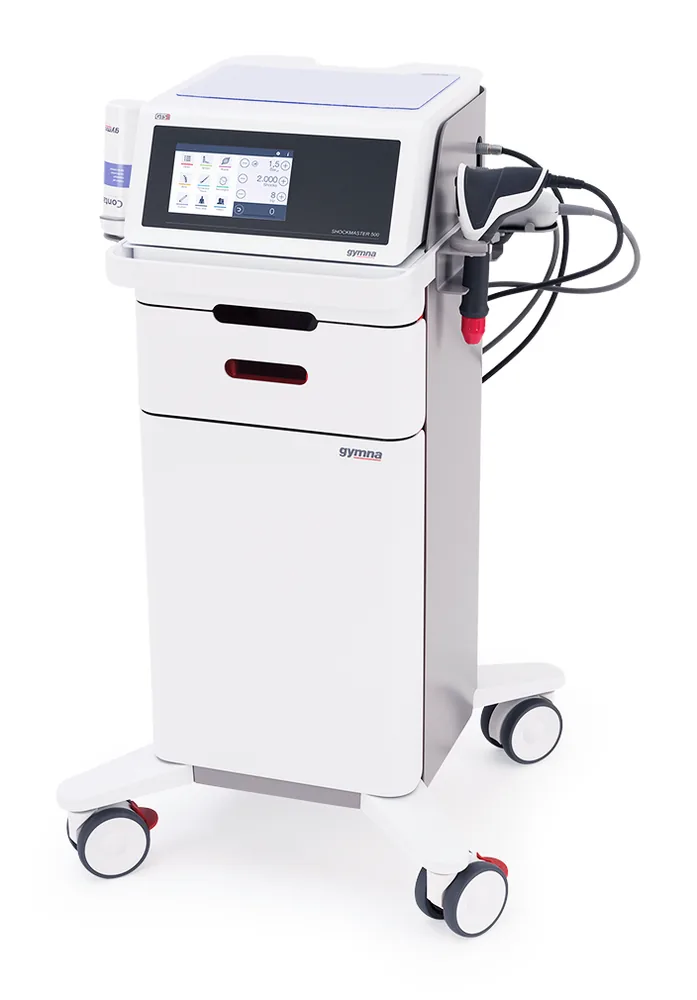

- Compare: Chattanooga Intelect Mobile 2 RPW vs Gymna ShockMaster 500
- Compare: Chattanooga Intelect Mobile 2 RPW vs BTL-6000 RSWT

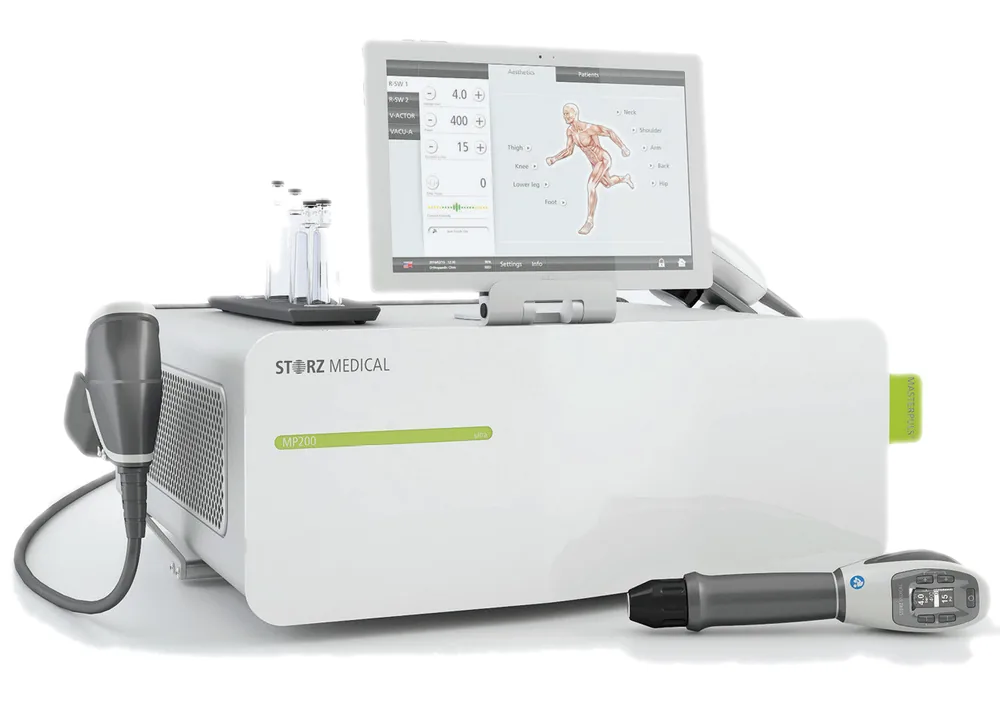

- Compare: Chattanooga Intelect Mobile 2 RPW vs STORZ MASTERPULS MP200 ultra

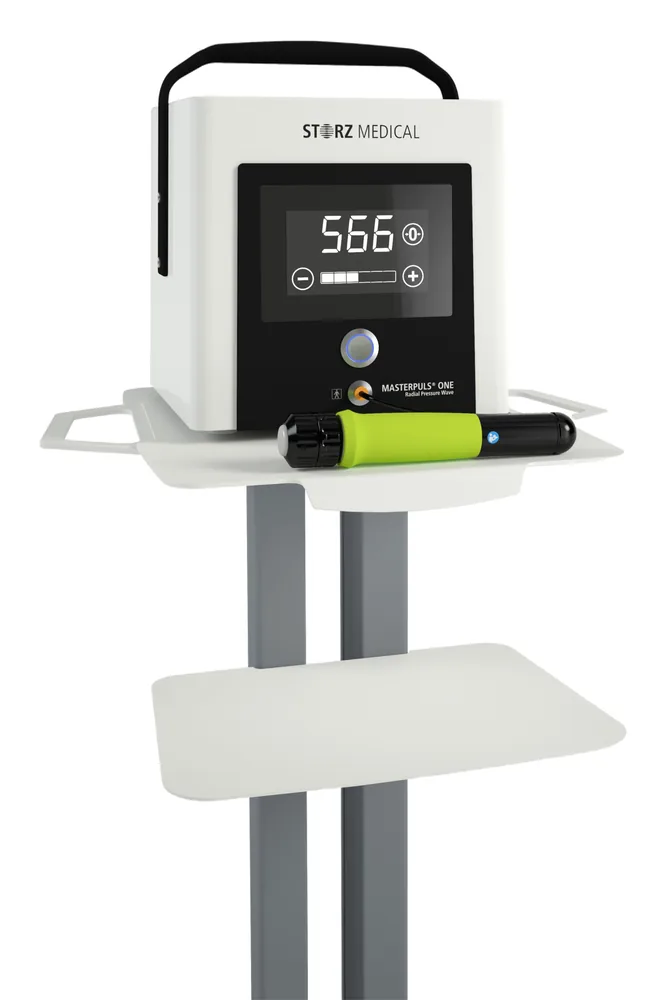

- Compare: Chattanooga Intelect Mobile 2 RPW vs STORZ MASTERPULS ONE

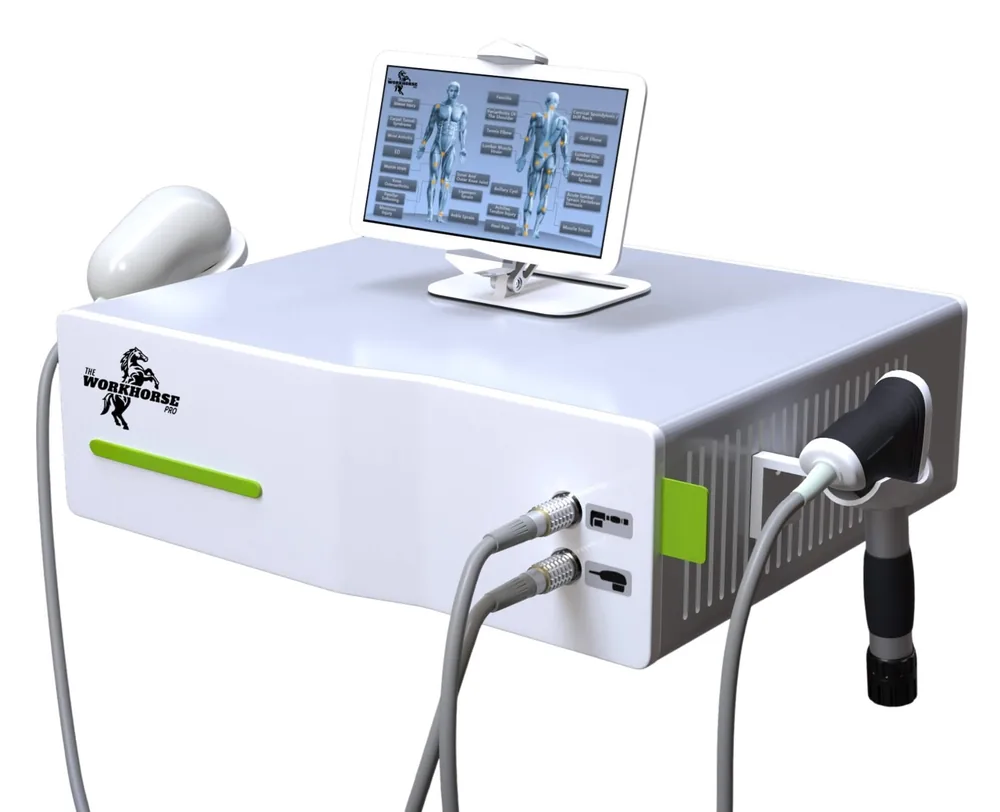

- Compare: Chattanooga Intelect Mobile 2 RPW vs Workhorse Mini / Pro / XL

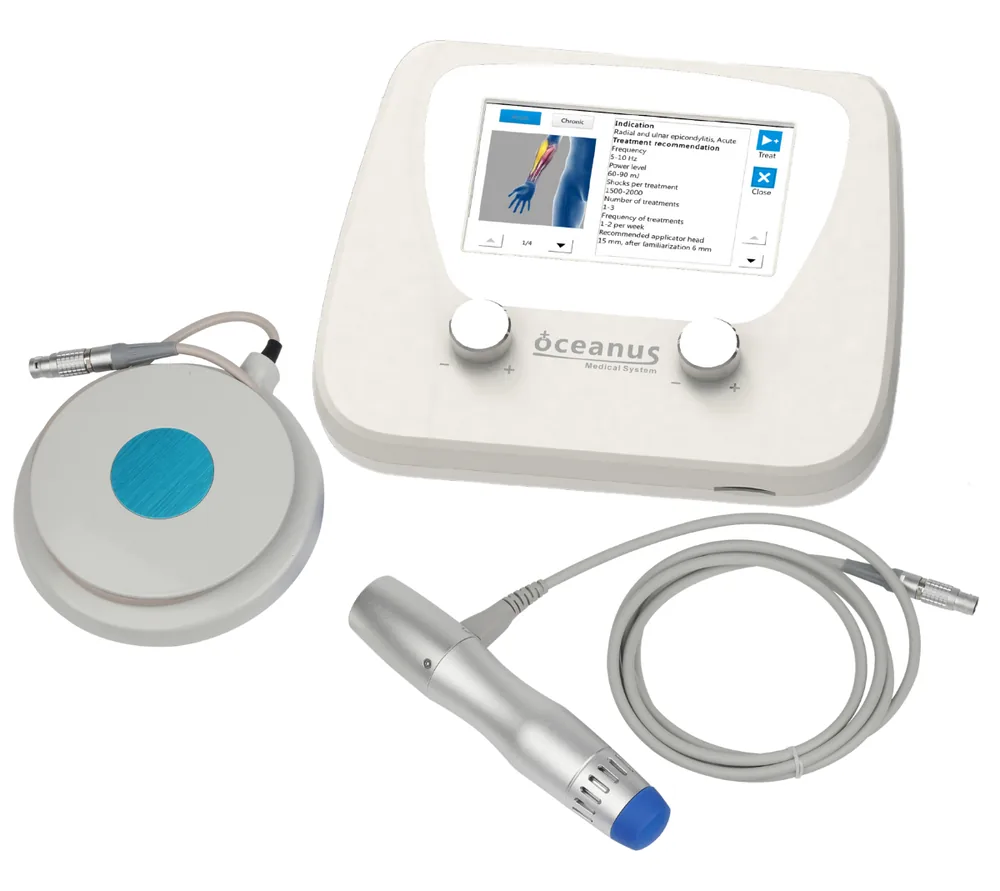

- Oceanus AmericaOceanus PhysioPRO / II / LITE$9,999 (PhysioPRO) / $5,999 (PhysioPRO II) / $500 per month lease advertisedCompare: Chattanooga Intelect Mobile 2 RPW vs Oceanus PhysioPRO / II / LITE
Also compared in: Chattanooga shockwave machines vs SoftWave
Chattanooga Intelect Mobile 2 RPW: common questions
How much does the Chattanooga Intelect Mobile 2 RPW cost?
Shockwave Source lists the Chattanooga Intelect Mobile 2 RPW at a purchase estimate of $16,709.85 or a lease estimate of $380 per month. Both are estimates: contract length, APR, total payments and the buyout are confirmed at quote.
Is the Chattanooga Intelect Mobile 2 RPW FDA cleared?
No model-specific FDA clearance was located. What exists is a DJO establishment and device listing, which registers the facility and the device type. A listing is not a clearance and carries no indication.
What kind of shockwave machine is the Chattanooga Intelect Mobile 2 RPW?
The Chattanooga Intelect Mobile 2 RPW is a pneumatic radial shockwave machine. A radial device puts its peak energy at the applicator surface and spreads it through a broad, superficial area.
Who makes the Chattanooga Intelect Mobile 2 RPW?
The Chattanooga Intelect Mobile 2 RPW is made by Chattanooga (part of Enovis Corporation), based in Lewisville, Texas, USA. Shockwave Source sells and leases it in the United States.
Can you lease the Chattanooga Intelect Mobile 2 RPW?
Yes. Shockwave Source leases the Chattanooga Intelect Mobile 2 RPW, with a lease estimate of $380 per month. That figure is an estimate rather than a term sheet: contract length, APR, total payments and the end-of-term buyout are confirmed at quote.
What are the Chattanooga Intelect Mobile 2 RPW's specifications?
The published figures for the Chattanooga Intelect Mobile 2 RPW are energy: 0.38–0.48 mJ/mm² with the standard transmitters · 1–5 bar; frequency: 1–21 Hz (the maximum falls to 12 Hz at 5 bar); depth: 0–50 mm max penetration; handpiece life: about 5 million shocks (expected service life; overhaul about every million); weight: 8.2 kg (≈ 18.1 lb) (control device). 8 of the 32 fields we track have no published figure, so ask for those in writing.
