Chattanooga Intelect Focus Shockwave
Electromagnetic focused

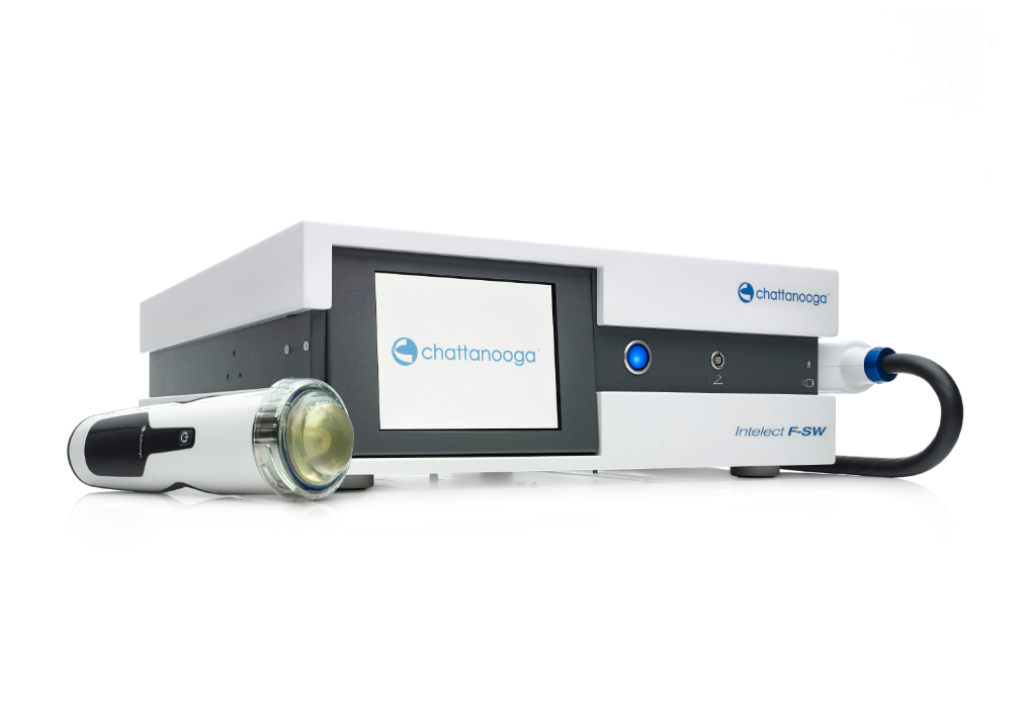

Chattanooga's focused shockwave system: an electromagnetic source in a transportable console, with two stand-offs to set the treatment depth.
- Purchase
- $50,176.02estimate
- Lease
- $1,165 per monthestimate
- Energy
- 0.01–0.55 mJ/mm² · 1.7–8.5 mJ per pulse
- Frequency
- 1–8 Hz
- Depth
- 0–65 mm focal depth · 5 × 5 × 30 mm focus volume
- Handpiece life
- 5 million shocksexpected; coil exchanged every 2 million
- Weight
- 22.1 kg (≈ 48.7 lb)control device
- FDA record
- Establishment listing onlynot a model-specific clearance
Specs and prices are estimates based on publicly available data as of September 2026. Confirm details with the manufacturer or seller before you buy.
Overview

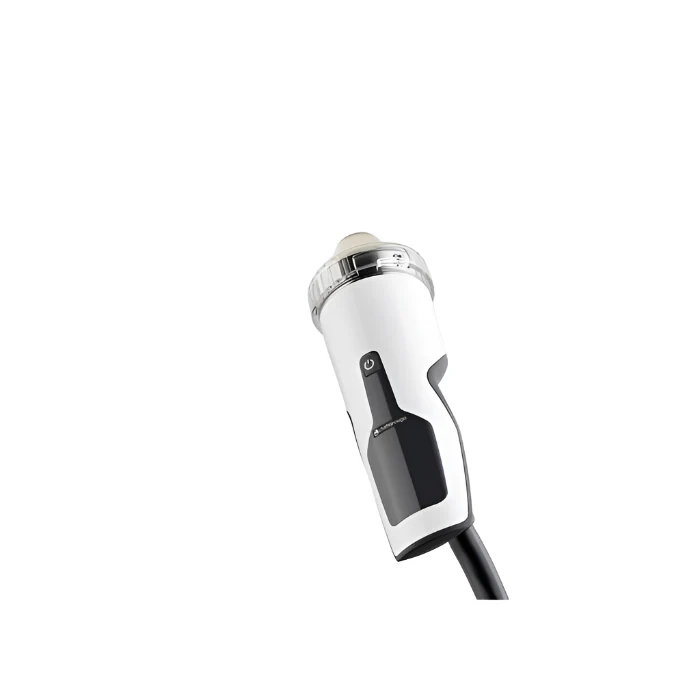

The handpiece generates the pressure wave electromagnetically and focuses it with a parabolic reflector. Per the US product page, energy is set in steps from 0.01 to 0.55 mJ/mm² and frequency from 1 to 8 Hz. The operating manual places the focal zone between 0 and 65 mm deep, depending on which stand-off is fitted.
Chattanooga launched the Focus Shockwave in 2016. Its US operating manual names STORZ MEDICAL AG of Switzerland as the manufacturer and DJO as the exclusive US distributor, and gives the control device an expected service life of 15,000 operating hours.
Where it stands out. Published purchase and lease pricing, which most of this set does not offer.
What to check. No FDA number appears on the reseller page.
Specifications
Every figure links to the page it came from. Fields the manufacturer does not publish are left out.
Technology
- Category
- Focused systems
- Wave generation
- Electromagnetic
- Energy fieldWhere the peak energy lands
- Peaks at a focal point
- Technology as published
- Electromagnetic focused
Energy output
Pressure in bar, energy flux density in mJ/mm² and energy per pulse in mJ are different quantities. A figure in one row never stands in for another.
- Energy flux densitymJ/mm²
- 0.01–0.55 mJ/mm²
- Energy per pulsemJ
- 1.7–8.5 mJwithin a 2.5 mm radius, from the operating manual's output table
- FrequencyHz
- 1–8 Hz
Depth and treatment field
Focal depth, penetration and focus volume measure three different things. Compare like with like.
- Focal depth
- 0–65 mmfocal zone, set with the two stand-offs
- Maximum penetration
- Awaiting manufacturer confirmationOur own catalogue states approximately 12 cm and Enovis states 12.5 cm. Neither figure is published until the manufacturer confirms which is current.
- Focus volumeA volume, not a depth
- 5 × 5 × 30 mmfocus size

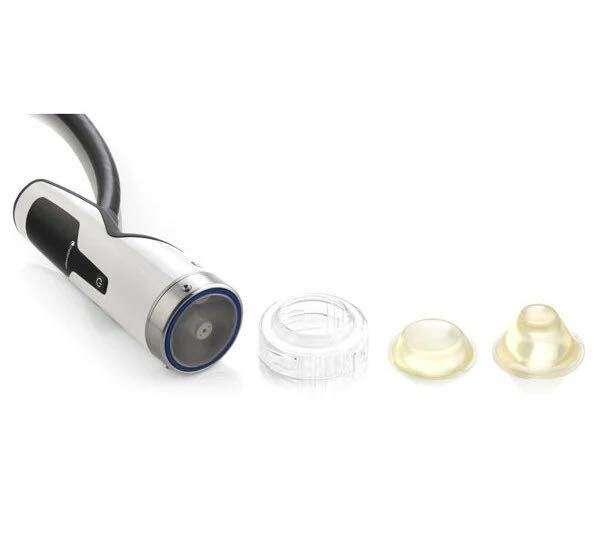

Applicators and handpiece
- Applicators and transmitters
- 2 stand-off variations
- Handpiece life
- 5 million shocksexpected; coil exchanged every 2 million
- Applicator weight
- 590 gper the US product page; the US operating manual gives 990 g
Size and setup
- Unit weight
- 22.1 kg (≈ 48.7 lb)control device
- Dimensions
- 450 × 165 × 530 mmW × H × D
- Configuration
- Transportable console with an LCD touchscreen
- Other published details
- 100–240 VAC, up to 450 VAexpected service life of the control device: 15,000 operating hours
Price and buying
- Purchase price
- $50,176.02estimate
- Monthly lease
- $1,165 per monthestimate
- Priced accessories
- F-SW Cart, $1,252.22
- Warranty and guarantees
- Two years on the control devicenew handpieces covered up to 1 million pulses; the coil and wear parts are excluded
- Sales and service
- Purchase or lease through Shockwave Source
Regulatory record
No model-specific FDA clearance was located. What exists is a DJO establishment and device listing, which registers the facility and the device type. A listing is not a clearance and carries no indication.
- FDA record located
- Establishment listing onlynot a model-specific clearance
- Indication as worded in the record
- Listing only. Not a model-specific clearance and carries no indication.
Compare the Chattanooga Intelect Focus Shockwave
Side-by-side pages for the machines it competes with directly. You can also compare it with any machine in the comparison tool.

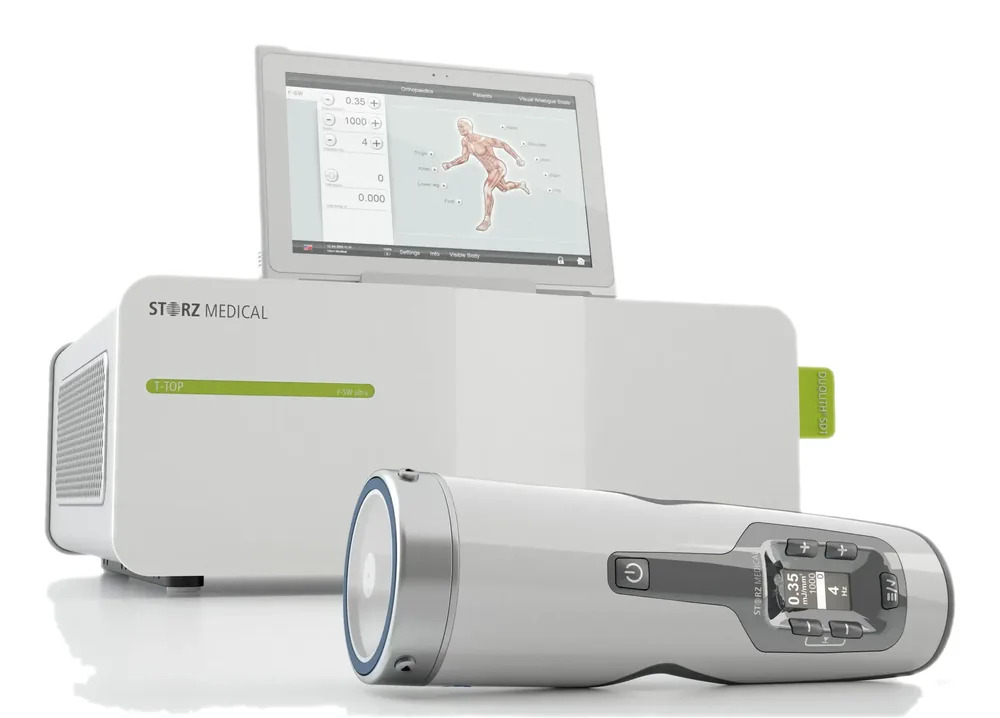

- Compare: Chattanooga Intelect Focus Shockwave vs STORZ DUOLITH SD1 T-TOP ultra

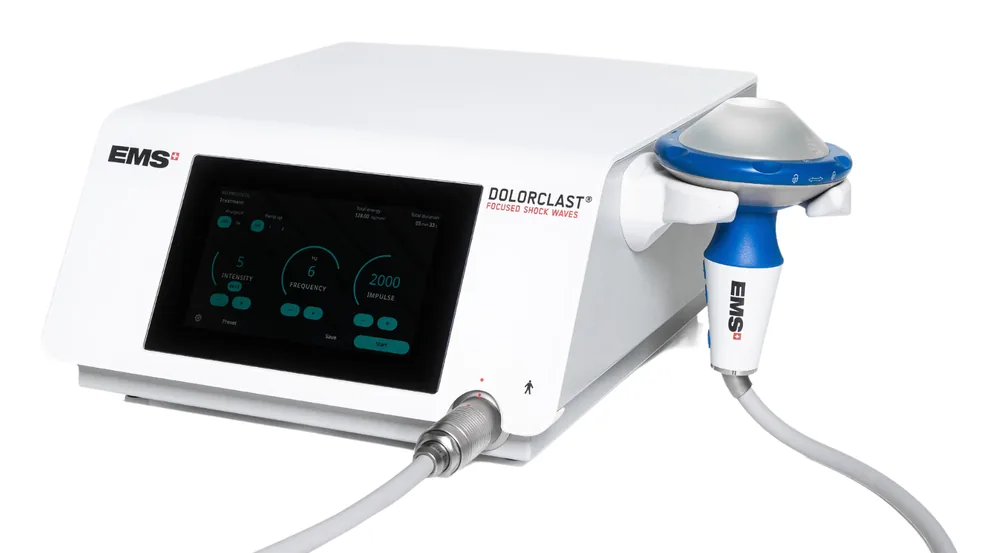

- Compare: Chattanooga Intelect Focus Shockwave vs EMS Swiss DolorClast Focused

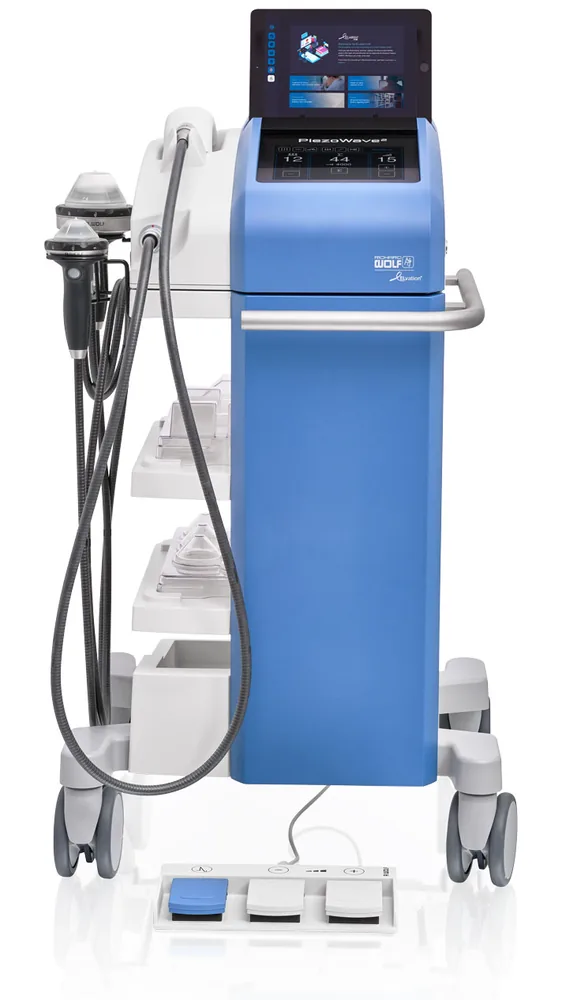

- Compare: Chattanooga Intelect Focus Shockwave vs ELvation PiezoWave2T

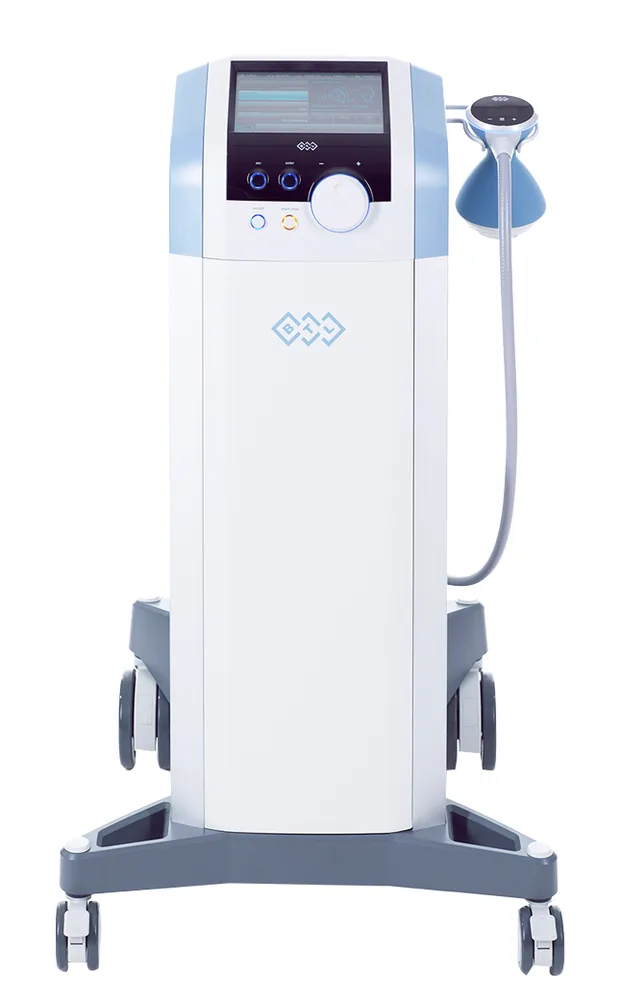

- Compare: Chattanooga Intelect Focus Shockwave vs BTL-6000 FSWT

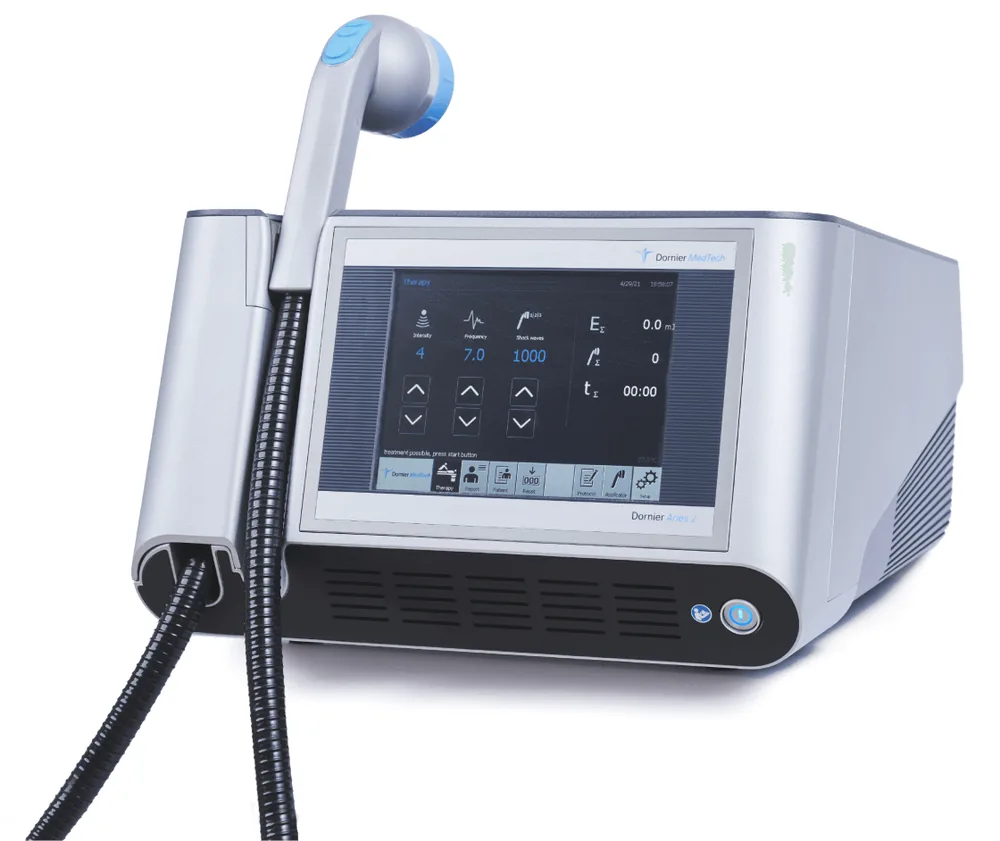

- Compare: Chattanooga Intelect Focus Shockwave vs Dornier Aries 2

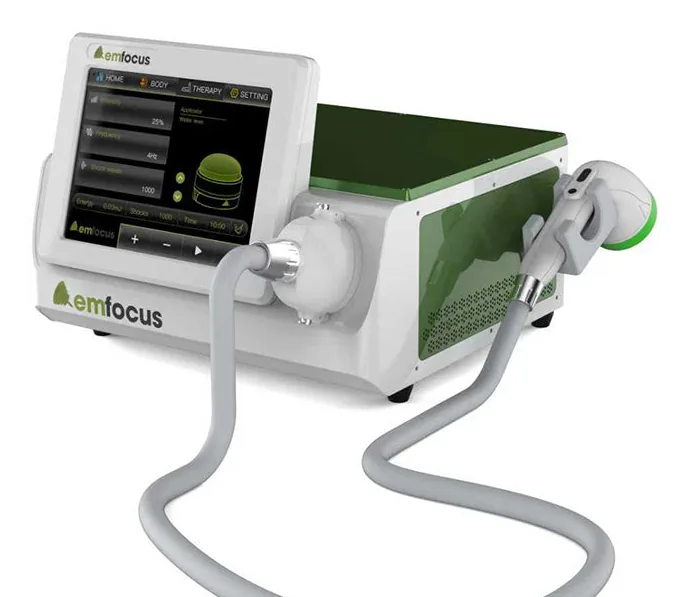

- Compare: Chattanooga Intelect Focus Shockwave vs KAPHA EMFOCUS / V / III

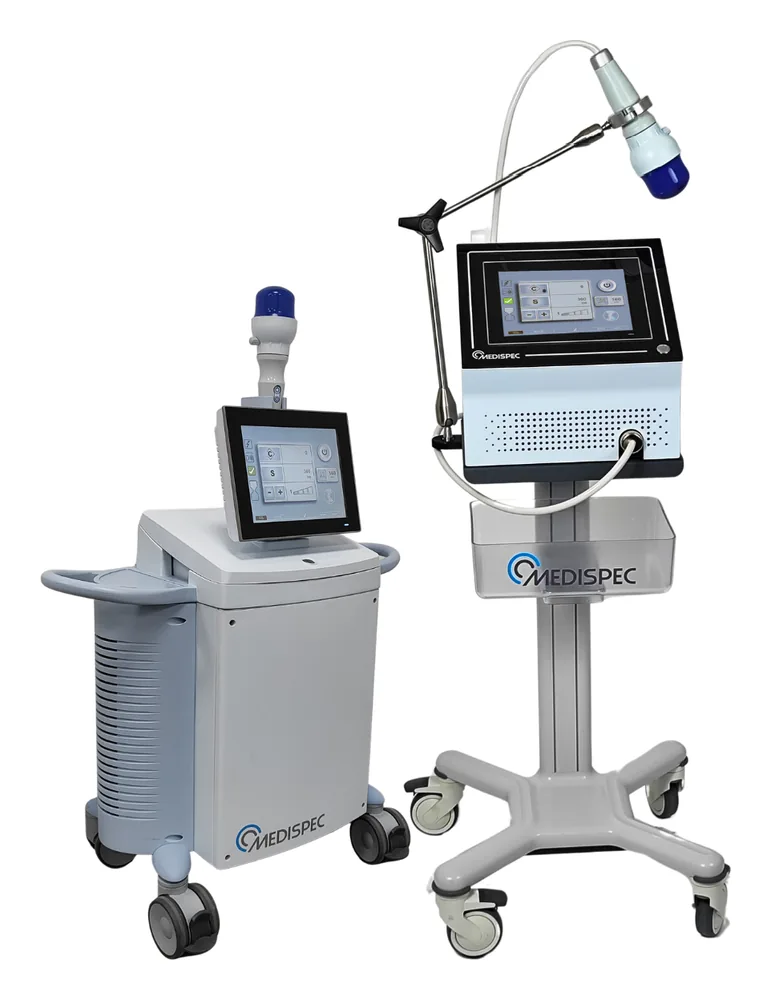

- Compare: Chattanooga Intelect Focus Shockwave vs Medispec Orthospec

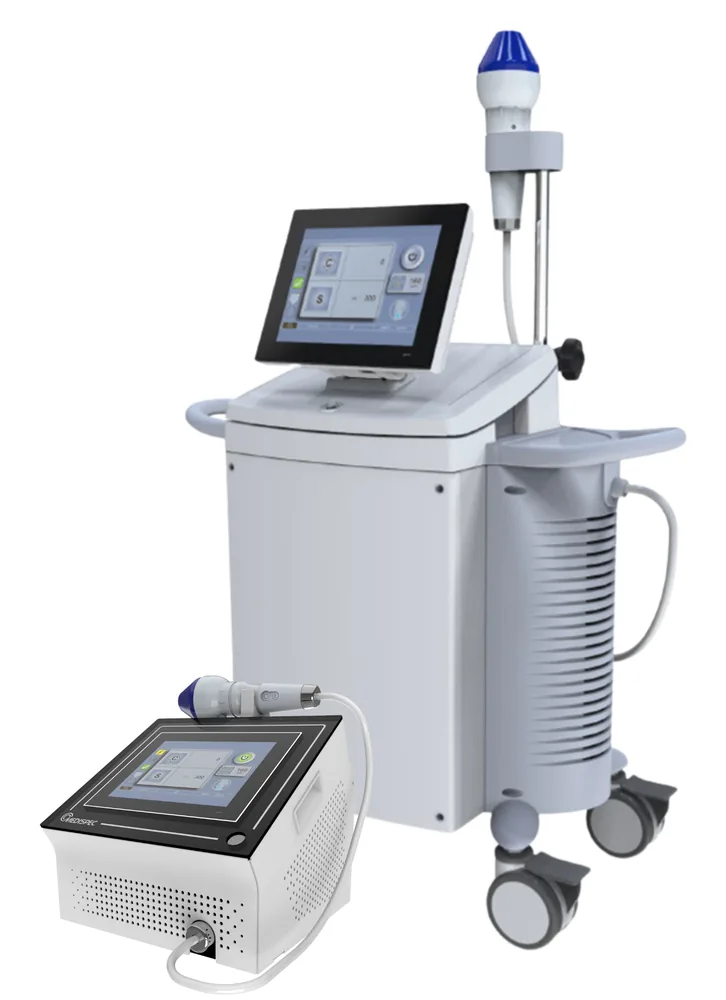

- Compare: Chattanooga Intelect Focus Shockwave vs Medispec ED1000

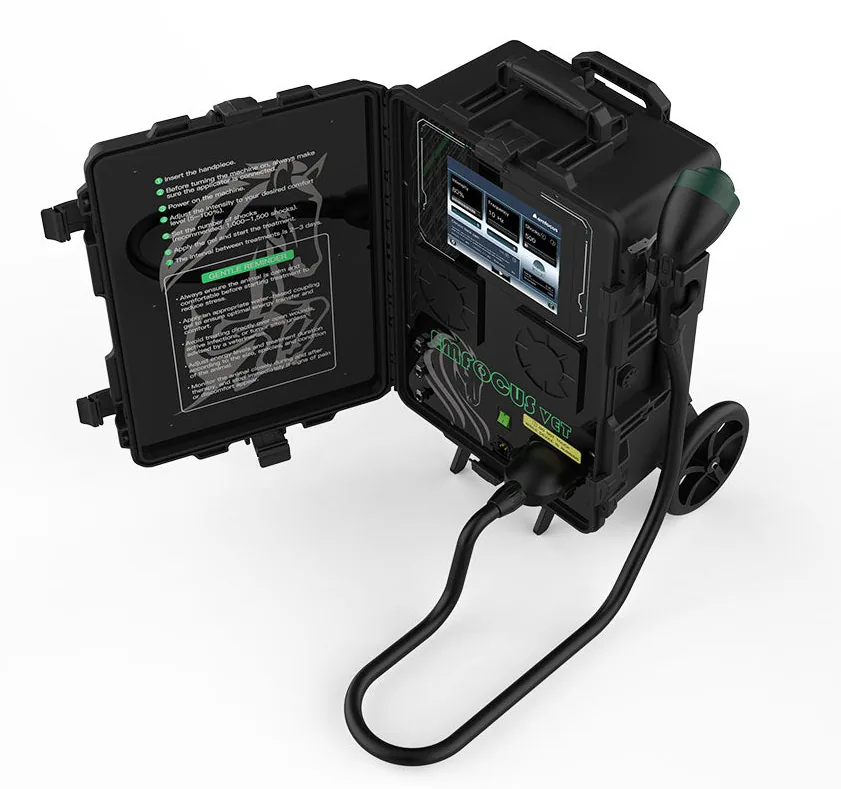

- Compare: Chattanooga Intelect Focus Shockwave vs KAPHA EMFOCUS VET
Also compared in: Chattanooga shockwave machines vs SoftWave
Chattanooga Intelect Focus Shockwave: common questions
How much does the Chattanooga Intelect Focus Shockwave cost?
Shockwave Source lists the Chattanooga Intelect Focus Shockwave at a purchase estimate of $50,176.02 or a lease estimate of $1,165 per month. Both are estimates: contract length, APR, total payments and the buyout are confirmed at quote.
Is the Chattanooga Intelect Focus Shockwave FDA cleared?
No model-specific FDA clearance was located. What exists is a DJO establishment and device listing, which registers the facility and the device type. A listing is not a clearance and carries no indication.
What kind of shockwave machine is the Chattanooga Intelect Focus Shockwave?
The Chattanooga Intelect Focus Shockwave is an electromagnetic focused shockwave machine. A focused device concentrates its energy at a selected point inside tissue rather than at the skin surface.
Who makes the Chattanooga Intelect Focus Shockwave?
The Chattanooga Intelect Focus Shockwave is made by Chattanooga (part of Enovis Corporation), based in Lewisville, Texas, USA. Shockwave Source sells and leases it in the United States.
Can you lease the Chattanooga Intelect Focus Shockwave?
Yes. Shockwave Source leases the Chattanooga Intelect Focus Shockwave, with a lease estimate of $1,165 per month. That figure is an estimate rather than a term sheet: contract length, APR, total payments and the end-of-term buyout are confirmed at quote.
What are the Chattanooga Intelect Focus Shockwave's specifications?
The published figures for the Chattanooga Intelect Focus Shockwave are energy: 0.01–0.55 mJ/mm² · 1.7–8.5 mJ per pulse; frequency: 1–8 Hz; depth: 0–65 mm focal depth · 5 × 5 × 30 mm focus volume; handpiece life: 5 million shocks (expected; coil exchanged every 2 million); weight: 22.1 kg (≈ 48.7 lb) (control device). 6 of the 32 fields we track have no published figure, so ask for those in writing.
