Photo: KAPHA Physio
KAPHA EMFOCUS VET
Veterinary electromagnetic focused
KAPHA Physio's veterinary focused shockwave unit, built into a wheeled case with a drawbar for use in clinics or stables.
- Price
- Not publicly listedquote or OEM
- Energy
- 0.45 mJ/mm² listed as intensity
- Frequency
- 1–10 Hz
- Depth
- Withheld: the manufacturer's figures conflict
- FDA record
- None located
Specs and prices are estimates based on publicly available data as of September 2026. Confirm details with the manufacturer or seller before you buy.
Overview
Like the EMFOCUS series, it uses an electromagnetic coil in water and sets depth with the water level in the applicator rather than with gel pads. KAPHA lists horses, dogs and cats as target species, with 23 built-in protocols; its brochure gives 1 to 10 Hz and an intensity of 0.45 mJ/mm².
KAPHA's own pages give two different maximum depths, 45 mm and 65 mm, so we withhold that figure.
Where it stands out. The only veterinary-specific model found in this research pass.
What to check. No US veterinary regulatory record was located, and the manufacturer's own specifications conflict on maximum depth: 45 mm in one place and 65 mm in another.
Specifications
Every figure links to the page it came from. Fields the manufacturer does not publish are left out.
Technology
- Category
- Broad-focused, urology and specialty
- Wave generation
- Electromagneticcoil in water
- Energy fieldWhere the peak energy lands
- Peaks at a focal point
- Technology as published
- Veterinary electromagnetic focused
- Stated use or positioning
- Veterinaryhorses, dogs and cats
Energy output
Pressure in bar, energy flux density in mJ/mm² and energy per pulse in mJ are different quantities. A figure in one row never stands in for another.
- Energy flux densitymJ/mm²
- 0.45 mJ/mm²listed as intensity
- FrequencyHz
- 1–10 Hz
Depth and treatment field
Focal depth, penetration and focus volume measure three different things. Compare like with like.
- Focal depth
- Withheld: the manufacturer's figures conflictThe manufacturer's own specifications give 45 mm in one place and 65 mm in another, so no depth figure is published.
Applicators and handpiece
- Preset protocols
- 23
Size and setup
- Dimensions
- 446 × 256 × 644 mm
- Configuration
- Mobile wheeled chassiswith a drawbar, for clinics or stables
- Other published details
- Water-based focusingno gel pads; intensity buttons on the handpiece
Price and buying
- Purchase price
- Not publicly listedquote or OEM
- Monthly lease
- Not publicly listedquote or OEM
Regulatory record
No US veterinary regulatory record was located. The maximum-depth specification is also internally inconsistent on the manufacturer's own site, so no depth figure is published here.
- FDA record located
- None located
Compare the KAPHA EMFOCUS VET
Side-by-side pages for the machines it competes with directly. You can also compare it with any machine in the comparison tool.
- ChattanoogaRecommendedChattanooga Intelect Focus Shockwave$50,176.02 purchase estimate / $1,165 per month lease estimateCompare: KAPHA EMFOCUS VET vs Chattanooga Intelect Focus Shockwave
- Compare: KAPHA EMFOCUS VET vs STORZ DUOLITH SD1 T-TOP ultra
- Compare: KAPHA EMFOCUS VET vs EMS Swiss DolorClast Focused
- Compare: KAPHA EMFOCUS VET vs ELvation PiezoWave2T
- Compare: KAPHA EMFOCUS VET vs BTL-6000 FSWT
- Compare: KAPHA EMFOCUS VET vs Dornier Aries 2
- Compare: KAPHA EMFOCUS VET vs KAPHA EMFOCUS / V / III

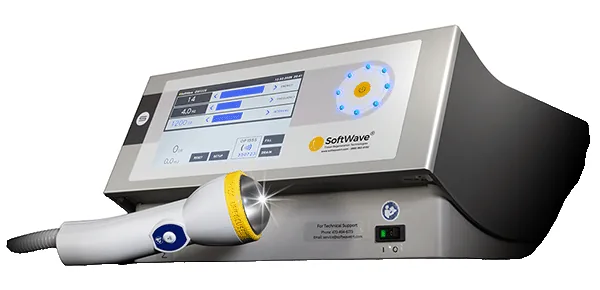

- SoftWave TRTSoftWave Gold Li Series (OW100S)$40,000–$99,000 as previously reported on 20 August 2026; the current public page uses an ROI calculator rather than a listed rangeCompare: KAPHA EMFOCUS VET vs SoftWave Gold Li Series (OW100S)
- Compare: KAPHA EMFOCUS VET vs Medispec Orthospec
- Compare: KAPHA EMFOCUS VET vs Medispec ED1000
KAPHA EMFOCUS VET: common questions
How much does the KAPHA EMFOCUS VET cost?
KAPHA Physio does not publish a price for the KAPHA EMFOCUS VET (quote or OEM). Ask for a written quote that covers accessories, warranty and handpiece replacement.
Is the KAPHA EMFOCUS VET FDA cleared?
No US veterinary regulatory record was located. The maximum-depth specification is also internally inconsistent on the manufacturer's own site, so no depth figure is published here.
What kind of shockwave machine is the KAPHA EMFOCUS VET?
The KAPHA EMFOCUS VET is an electromagnetic focused shockwave machine. A focused device concentrates its energy at a selected point inside tissue rather than at the skin surface. Stated use: Veterinary.
Who makes the KAPHA EMFOCUS VET?
The KAPHA EMFOCUS VET is made by KAPHA Physio, based in Guangzhou, China.
Can you lease the KAPHA EMFOCUS VET?
We found no published lease terms for the KAPHA EMFOCUS VET. Ask the seller whether financing is available, and get the term, APR, total payments and buyout in writing.
What are the KAPHA EMFOCUS VET's specifications?
The published figures for the KAPHA EMFOCUS VET are energy: 0.45 mJ/mm² listed as intensity; frequency: 1–10 Hz. 15 of the 32 fields we track have no published figure, so ask for those in writing.
